Thermostats for Porsche 356, 912 and 914
These stats are made specifically for the needs of the Porsche 356, 912 and 914.
The 912 is a little odd, as it uses the 356 stat in the early years and the 914 stat in the later years.
The 356 thermostat is used to control warm air flowing up to the carb air cleaner area, based on ambient temp around the engine.
The 914 stat is used to control flaps that duct cooling air to the oil cooler and the cylinders, based on hot air coming off the cylinders.
Although they look the same, you can not use a typical VW thermostat on these engines, the opening temps are wrong for these cars.
All thermostats come with a two year warranty.
The 912 is a little odd, as it uses the 356 stat in the early years and the 914 stat in the later years.
The 356 thermostat is used to control warm air flowing up to the carb air cleaner area, based on ambient temp around the engine.
The 914 stat is used to control flaps that duct cooling air to the oil cooler and the cylinders, based on hot air coming off the cylinders.
Although they look the same, you can not use a typical VW thermostat on these engines, the opening temps are wrong for these cars.
All thermostats come with a two year warranty.
Porsche 356 & EARLY 912 thermostat
Model: Porsche 356, (46-65)
Porsche 912 (65-67)
Temp range: 23-34C opening
Part Number: 546.06.590
Porsche 912 (65-67)
Temp range: 23-34C opening
Part Number: 546.06.590
Engine: early 1600
Warranty: Yes 2 years
ONLY $189.00
ONLY $189.00

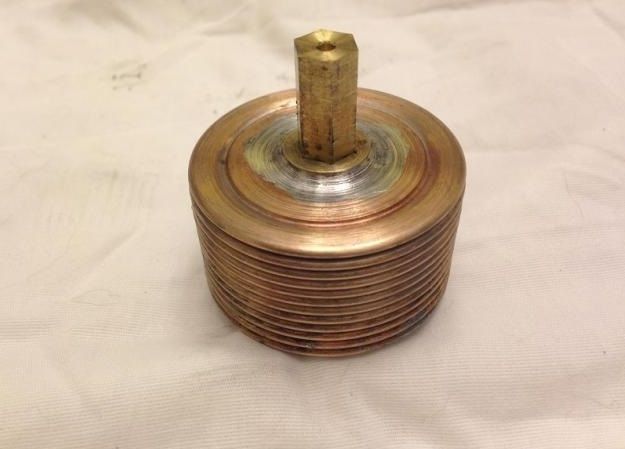

Porsche 914 & LATE 912 thermostat
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
Part Number:
021 119 159A
Temp range: 85 90C opening
Part Number:
021 119 159A
Temp range: 85 90C opening
Warranty: Yes 2 years
ONLY $144.00
ONLY $144.00
Porsche 914 & 912 thermostat + cable
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
Part Number:
021 119 159A
Temp range: 85 90C opening
Part Number:
021 119 159A
Temp range: 85 90C opening
Warranty: Yes 2 years
includes new, cut to length stainless steel cable.
ONLY $154.00
includes new, cut to length stainless steel cable.
ONLY $154.00
Porsche 914 cable alone
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
Part Number:
Part Number:
- 021.119.751
cut to length stainless steel cable.
ONLY $10.00
ONLY $10.00

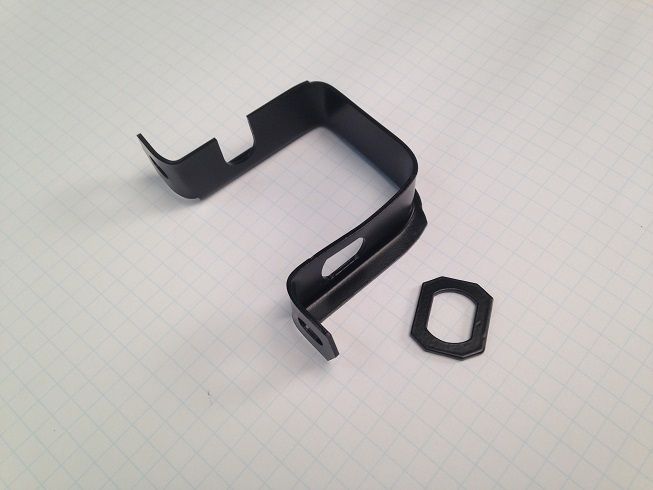

Porsche 914 stat bracket + washer
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
ONLY $34.00
ONLY $34.00

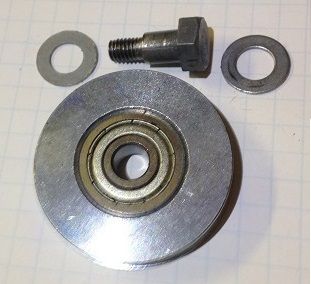

Porsche 914 stat (bearing) pulley + bolt
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
ONLY $40.00
ONLY $40.00

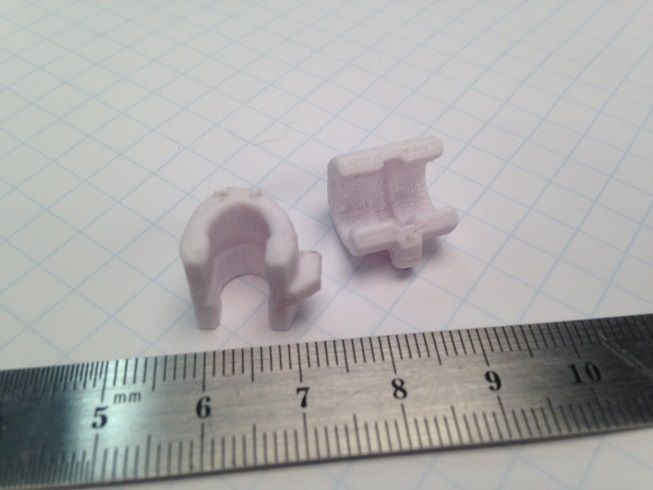

Porsche 914 saddle bearings (pair)
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
ONLY $20.00
ONLY $20.00

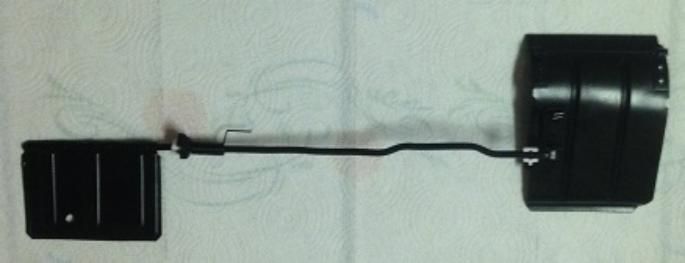

Porsche 914 complete flaps assembly
Model: Porsche 914 70-76
Porsche 912 (68,69,76)
Porsche 912 (68,69,76)
Engine: type iv
ONLY $150.00
ONLY $150.00
